Specification

1/2"F×1/2"F, 1/2"F×1/2"M, 3/4"F×1/2"M, 3/4"F×3/4"F

A gas filter is a device installed on gas pipelines, primarily used to filter impurities in natural gas, such as moisture, tar, sediment, etc. It is essential for gas equipment like condensing boilers and wall-hung boilers, effectively protecting the boilers, improving combustion efficiency, and extending their service life. The structure of a gas filter typically includes a filter element. When gas passes through, impurities are blocked on the filter element, while clean gas continues to flow. Regular cleaning or replacement of the filter element is key to maintaining the gas filter.

A gas filter is a must-have for condensing boilers and wall-hung boilers. It can filter impurities such as tar, sediment, and water from natural gas, preventing carbon deposition in the combustion chamber, blocking gas holes, and rusting of the heat exchanger. Installing a gas filter protects the boiler, improves the combustion efficiency of wall-hung boilers, and extends the boiler's service life.

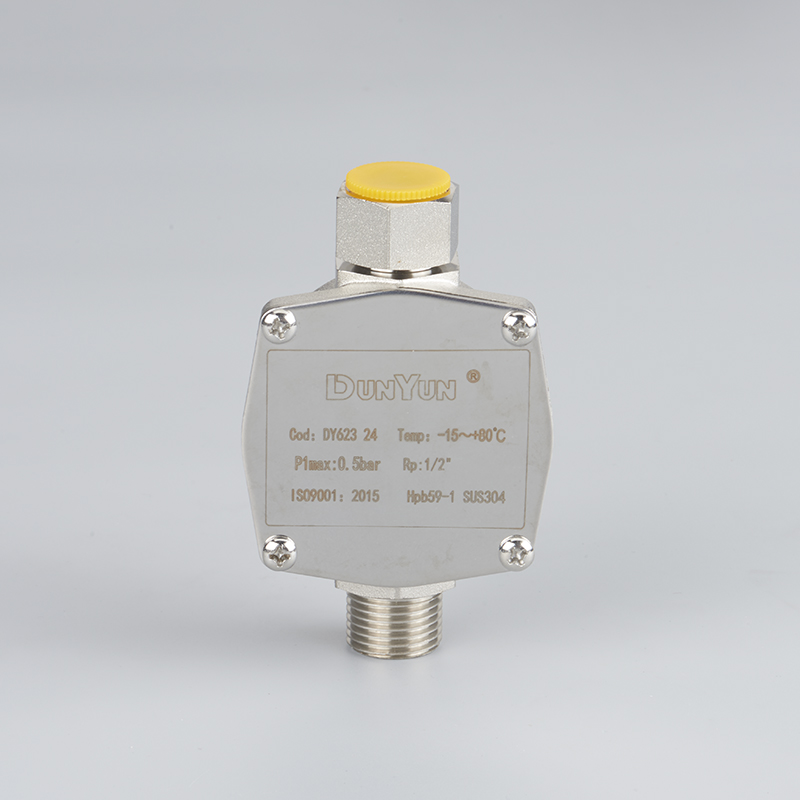

gas filter

What Does A Gas Filter Do?

1. Filter impurities

Removes solid particles in gas (such as rust, welding slag, dust, sediment, etc.) to prevent impurities from blocking precision components like gas nozzles, valves, and instruments, which could affect combustion efficiency or cause malfunctions.

2. Protect equipment

Extends the service life of gas appliances (such as gas stoves, gas water heaters, gas boilers, etc.) and reduces maintenance costs caused by impurity-induced wear.

3. Ensure safety

Avoids safety hazards such as gas leaks and incomplete combustion caused by impurities, ensuring stable operation of the gas system.

What Is The Structure Of A Gas Filter?

A gas filter typically consists of the following components: a nickel-plated HPB59-1 copper shell, which is pressure-resistant and corrosion-resistant to protect the internal filter element.

Filter element: The core component, commonly made of materials such as stainless steel mesh, nylon mesh, or sintered metal, with pore sizes designed according to filtration precision (e.g., 50 mesh, 100 mesh, etc.).
Inlet and outlet interfaces: Connected to gas pipelines, with interface types such as threaded connections.
Drain port: Some filters are equipped with drain valves or detachable end caps for regular cleaning of impurities trapped by the filter element.
